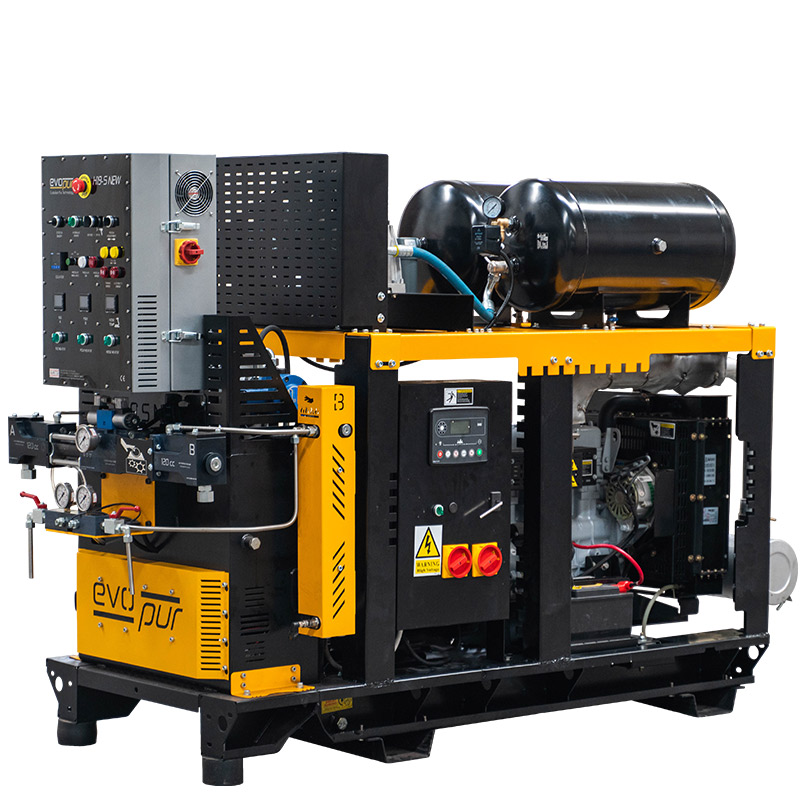

G Serie PUR en Polyurea Spray Foam Machine

G Series

Polyurethane Spray Foam & Polyurea Spray Machine

G Series Polyurethane and Polyurea Spray Insulation Machine offers a complete solution in polyurethane and polyurea applications with features such as energy independence, low energy need, pressure brewing system and reliable performance.

  • G Series provides durability and long life by using the 5th generation hydraulic system based on current technology.
  • this feature contributes to the powerful and efficient performance of the machine.

G Series

Integrated Generator and Compressor System

The machine has the ability to produce its own electricity and air with the generator and compressor inside.

  • This integrated system offers a strong advantage that distinguishes it from its competitors by providing energy independence.
  • Thanks to its specially developed pump, it has the ability to shoot up to 12 kg per minute with low energy requirement.
  • High efficiency allows users to do more work while consuming less energy.

G Series

Compliance with Various Working Conditions:

The ability to operate on mains electricity or a generator provides users with flexibility in various working environments.

  • The ability to charge its own battery as long as mains electricity is used saves energy.
  • G Series eliminates obstacles that may be encountered in equipment and occupational safety with its pressure brewing system. This feature provides a safe and effective working environment.
  • The machine stands out with its ease of maintenance, minimum malfunction and high reliability. These features help users achieve long-term and trouble-free performance.

Machine Technical Information


Europe-Asia-Africa-Australia America
Volt 350-415 220-240
Maks KW 19.5 (19.500 W) 19.5 (19.500 W)
Ampere 38 45
Phase 3 Ø Y 3 Ø Δ
Hz 50 60
Generator(KW) 35 35
Maximum Fluid Output (25°C ambient temp) 12 kg/dk 12 kg/dk
Max. Fluid Pressure (25°C ambient temp) 1,5 MPa, 150 bar, 2175 Psi veya 2.4 MPa, 2,45 MPa, 245 bar, 3553 Psi 1,5 MPa, 150 bar, 2175 Psi veya 2.4 MPa, 2,45 MPa, 245 bar, 3553 Psi
Adjustable Fluid Pressure 30 bar - 200 bar 30 bar - 200 bar
Oil Pressure 72 bar 72 bar
Preheater (KW) 5000 W herbiri 5000 W herbiri
Hose Heating (KW) 4 kw 4 kw
Fluid Output (ISO) 16 - 1.5 metric 1/2 Unf
Fluid Output (POLY) 18 - 1.5 metric 9/16 Unf
Fluid Input (ISO) (G) 3/4 (2.0 MPa, 20 bar) max. (Npt) 3/4 (2.0 MPa, 20 bar) max.
Fluid Input (POLY) (G) 3/4 (2.0 MPa, 20 bar) max. (Npt) 3/4 (2.0 MPa, 20 bar) max.
Max. Fluid Temperature 90°C / 194°F 90°C / 194°F
Max. Hose Length (Mt.) 60 Mt. 60 Mt.
Hydraulic Oil Capacity(Lt.) 34 34
Net Weight 1.050 kg (1050.000 gr.) 1.050 kg (1050.000 gr.)
