H-19S Smart Touch PUR en Polyurea Spray Foam Machine

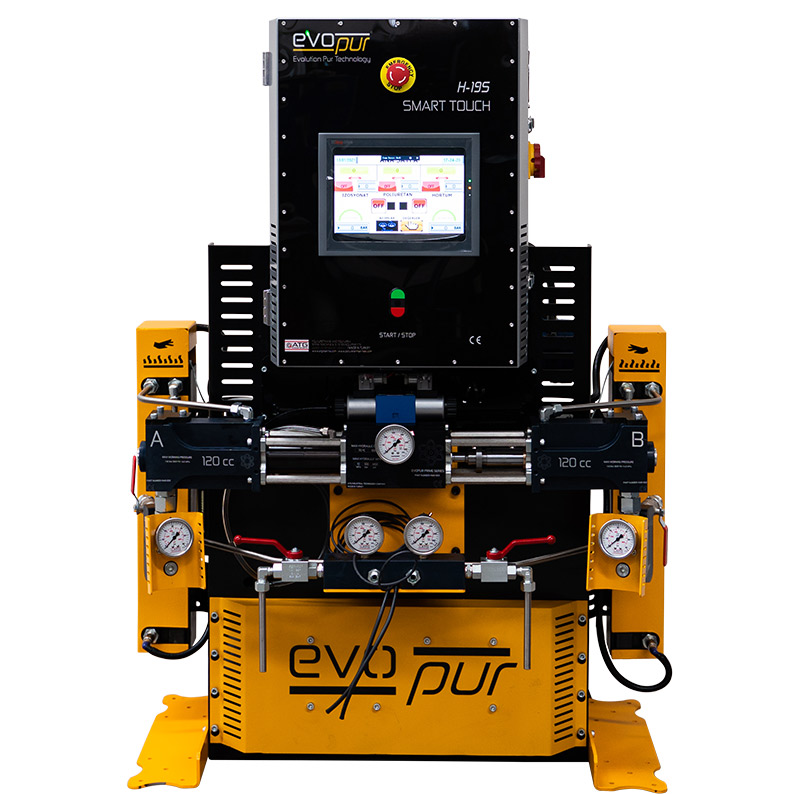

H-19S Smart Touch

Polyurethane Spray Foam & Polyurea Spray Machine

H-19S Smart Touch Polyurethane Foam & Polyurea Spray Machine offers an effective solution for businesses' polyurethane and polyurea spray applications with its technological innovations, powerful performance and user-friendly interface.

  • The machine offers durability and long life by using the 5th generation hydraulic system equipped with current technology.
  • The innovative 10-inch touch screen provides users with easy and intuitive operation.
  • It increases operating efficiency by monitoring daily performance and recording possible malfunctions.

H-19S Smart Touch

Performance and Error Log

The machine facilitates maintenance processes by recording daily performance and possible malfunctions.

  • This feature offers business owners more effective maintenance and performance monitoring.
  • H-19S Smart Touch provides the user with an easy and controlled experience by working with the data in its memory.
  • This feature allows past work to be referenced and business processes to be optimized.

H-19S Smart Touch

Power, Durability and Efficiency

H-19S Smart Touch stands out with its powerful performance, robust design and maximum efficiency. Its suitability for polyurea spray applications offers a wide range of uses in various sectors.

  • The pressure balancing system, which displays all errors occurring in the system on the screen, helps the user in work safety and quality.
  • It provides the opportunity to quickly detect and resolve errors.
  • This high-tech machine is designed to add safety, quality and efficiency to the business.

Machine Technical Information


Europe-Asia-Africa-Australia America
Volt 350-415 220-240
Max KW 23 (23.000 W) 23 (23.000 W)
Ampere 45 54
Phase 3 Ø Y 3 Ø Δ
Hz 50 60
Generator(KW) 33 33
Maximum Fluid Output (25°C ambient temp) 12-19 kg/dk 12-19 kg/dk
Max. Fluid Pressure (25°C ambient temp) 1,5 MPa, 150 bar, 2175 Psi veya 2.4 MPa, 2,45 MPa, 245 bar, 3553 Psi 1,5 MPa, 150 bar, 2175 Psi veya 2.4 MPa, 2,45 MPa, 245 bar, 3553 Psi
Adjustable Fluid Pressure 30 bar - 150 - 240 bar 30 bar - 150 - 240 bar
Oil Pressure 72 bar 72 bar
Preheater (KW) 7,5 7,5
Hose Heating (KW 4 4
Fluid Output (ISO) 16-1.5 metric 1/2 Unf
Fluid Output (POLY) 18-1.5 metric 9/16 Unf
Fluid Input (ISO) (G) 3/4 (2.0 MPa, 20 bar) max. (Npt) 3/4 (2.0 MPa, 20 bar) max.
Fluid Input (POLY) (G) 3/4 (2.0 MPa, 20 bar) max. (Npt) 3/4 (2.0 MPa, 20 bar) max.
Max. Fluid Temperature 90°C / 194°F 90°C / 194°F
Max. Hose Length (Mt.) 120 120
Hydraulic Oil Capacity(Lt.) 34 34
Net Weight 270 kg (270.000 gr.) 270 kg (270.000 gr.)
Voltage Codes
Ø PHASE
Δ DELTA
Y WYE
