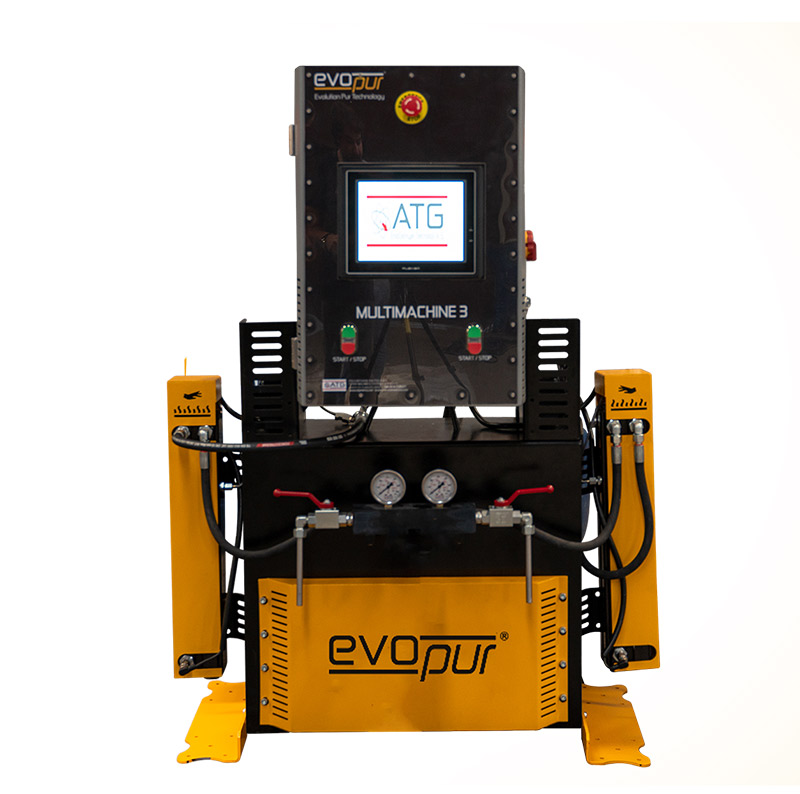

Multimachine 3 PUR en Polyurea Spray Foam Machine

Multimachine 3

Polyurethane Spray Foam & Polyurea Spray Machine

Multimachine 3 Polyurethane Spray Machine stands out as a remarkable solution of the mechanical world with its wide application range, proportioning ability and fireproof polyurethane features.

  • Multimachine 3 offers a wide range of applications with its 1-10 ratio capability.
  • This feature provides flexibility in different projects and materials.

Multimachine 3

Fireproof Polyurethane Spray Foam Application

Multimachine 3 makes it possible to apply fireproof polyurethane spray foam in proportions needed by the new world.

  • TIts fireproof feature is especially preferred in applications requiring fire safety.
  • he 10-inch touch screen, which offers one-touch chemical proportioning, allows users to easily control the process.
  • This feature provides operators with an intuitive experience.

Multimachine 3

Various Application Options

Ideal for polyurethane foam applications and coating polyurethanes such as conipur.

  • It has been specially developed for proportioned polyurethanes, fireproof polyurethanes and elastomer spray applications.
  • The machine increases users' productivity by facilitating application and proportioning processes.
  • Operators save time with the advantage of one-touch proportioning.
  • This feature delivers optimized performance to meet the needs of specific applications.
  • Multimachine 3 provides a wide range of uses in proportional polyurethane and elastomer applications. It can be used in various projects in different sectors.

Machine Technical Information


Europe-Asia-Africa-Australia America
Volt 350-415 220-240
Maks(KW) 27 (27.000 W) (27 kwa) 27 (27.000 W) (27 kwa)
Ampere 45 54
Phase 3 Ø Y 3 Ø Δ
HZ 50 60
Generator(KW) 33 33
Maximum Fluid Output (25°C ambient temp) 12 kg/dk 12 kg/dk
Max. Fluid Pressure (25°C ambient temp) 1,5 MPa, 150 bar, 2175 Psi 1,5 MPa, 150 bar, 2175 Psi
Adjustable Fluid Pressure 30 bar - 150 bar 30 bar - 150 bar
Adjustable Ratio 1 - 10 1 - 10
Oil Pressure 72 bar 72 bar
Preheater(KW) 7,5 7,5
Hose Heating(KW) 4 4
Fluid Output (ISO) 16-1.5 metric 1/2 Unf
Fluid Output (POLY) 18-1.5 metric 9/16 Unf
Fluid Input (ISO) (G) 3/4 (2.0 MPa, 20 bar) max. (Npt) 3/4 (2.0 MPa, 20 bar) max.
Fluid Input (POLY) (G) 3/4 (2.0 MPa, 20 bar) max. (Npt) 3/4 (2.0 MPa, 20 bar) max.
Max. Fluid Temperature 55°C / 131°F 55°C / 131°F
Max. Hose Length (Mt.) 120 120
Hydraulic Oil Capacity(Lt.) 34 34
Net Weight 270 kg (270.000 gr.) 270 kg (270.000 gr.)
Voltage Codes
Ø PHASE
Δ DELTA
Y WYE
