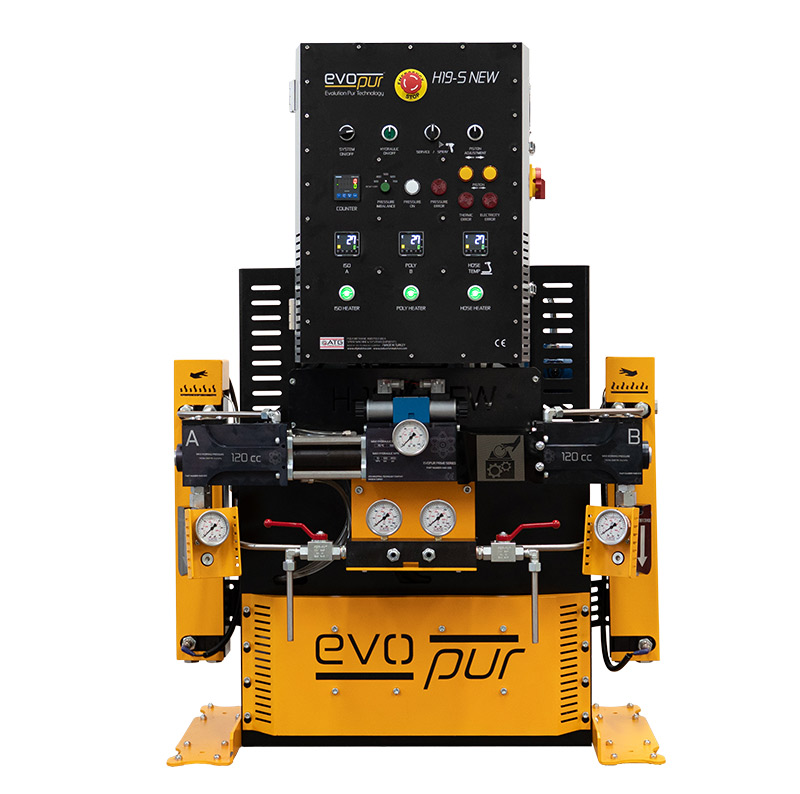

H19-S PUR Spray Foam Machine

H19-S

Polyurethane Spray Foam Machine

H19-S Polyurethane Spray Foam Machine has features to make your job easier by providing a strong, durable and efficient solution in polyurethane spray foam applications.

  • The machine provides faster and more efficient operation by using the 5th generation hydraulic system based on current technology.
  • The H19-S model allows shooting up to 19 kg per minute. This feature provides maximum efficiency in fast and large volume applications.

H19-S

Large shot capacity saves time and labor

The machine offers strong and robust performance in the world of polyurethane spray foam.

  • It is designed to add durability and strength to your work.
  • H19-S is especially ideal for insulation applications. Thanks to its large shooting capacity, it can be used effectively in large areas.

H19-S

Work Efficiency and Speed

High firing capacity and fast operation features increase users' work efficiency.

  • These features enable faster progress on large projects.
  • H19-S is a quality polyurethane foam machine that will add value to your business.
  • Its design is focused on users working smoothly and effectively.

Machine Technical Information


Europe-Asia-Africa-Australia America
Volt 350-415 220-240
Max(KW) 27 (27.000 W) (27 kwa) 27 (27.000 W) (27 kwa)
Ampere 45 54
Phase 3 Ø Y 3 Ø Δ
HZ 50 60
Generator(KW) 33 33
Maximum Fluid Output (at 25°C ambient temperature) 19 kg/dk 19 kg/dk
Maximum Fluid Pressure (at 25°C ambient temperature) 1,5 MPa, 150 bar, 2175 Psi 1,5 MPa, 150 bar, 2175 Psi
Adjustable Fluid Pressure 30 bar - 150 bar 30 bar - 150 bar
Oil Pressure 72 bar 72 bar
Preheater(KW) 7,5 7,5
Hose Heating(KW) 4 4
Fluid Outlet Nipple (ISO) 16-1.5 metric 1/2 Unf
Fluid Outlet Nipple (POLY) 18-1.5 metric 9/16 Unf
Fluid Input Nipple (ISO) (G) 3/4 (2.0 MPa, 20 bar) max. (Npt) 3/4 (2.0 MPa, 20 bar) max.
Fluid Input Nipple (POLY) (G) 3/4 (2.0 MPa, 20 bar) max. (Npt) 3/4 (2.0 MPa, 20 bar) max.
Max. Fluid Temperature 55°C / 131°F 55°C / 131°F
Max. Hose Length (Mt.) 120 120
Hydraulic Oil Capacity (Lt.) 34 34
Net weight 270 kg (270.000 gr.) 270 kg (270.000 gr.)
Voltage Codes
Ø FAZ
Δ DELTA
Y WYE
